Introducing the Neopower 240A/120A Connector Set, the ultimate power and signal solution for high-capacity Battery Energy Storage Systems (BESS). This robust plug and receptacle pair is engineered to handle massive peak currents up to 240A, providing unparalleled performance for utility-scale and large commercial applications. The hybrid pin layout integrates high-current power lines and low-voltage signal/data lines into a single, secure interface, dramatically simplifying system design and assembly. Featuring an innovative floating receptacle, this connector set compensates for misalignment during module stacking, ensuring a perfect, low-resistance connection every time.
Extreme Current Capability: Safely handles 120A continuous and 240A peak current, designed for the most demanding energy storage and discharge cycles.
Floating Receptacle Design: The floating mechanism in the socket allows for tolerance in mating alignment, preventing pin damage and guaranteeing a secure connection in large multi-module stacks.
Integrated Hybrid Connection: Combines power (4-6AWG) and signal (20-22AWG) pins in one compact housing, reducing the need for multiple connectors and streamlining wiring.
High Voltage Ready: Certified for DC systems up to 1500V, providing the headroom needed for modern, high-efficiency energy architectures.
Unmatched Durability: With an IP67 rating, silver-plated brass terminals, and a UL94-V0 flame-retardant housing, this connector set is built for maximum safety and a long operational life in any environment.
The definitive choice for developers of next-generation, high-density power systems:
Utility-Scale & Commercial BESS
High-Capacity Residential Energy Storage
Data Center Power Backup Infrastructure
Electric Heavy-Duty Vehicle Charging
Any modular system requiring robust, high-amperage, and mis-alignment tolerant connections.
| Specification | Value |
| Rated Current | 240A (Peak) / 120A (Continuous) |
| Rated Voltage | Up to 1500V DC |
| IP Rating | IP67 |
| Fire Resistance Rating | UL94-V0 |
| Operating Temperature | -40°C to +125°C |
| Housing Material | Nylon |
| Hardware Material | Brass |
| Surface Coating | Silver Plated |
| Wire Range | 4-6AWG / 8-10AWG / 20-22AWG |
| Key Feature | Floating Receptacle for Misalignment |
| Pin Configuration | Hybrid Power & Signal |

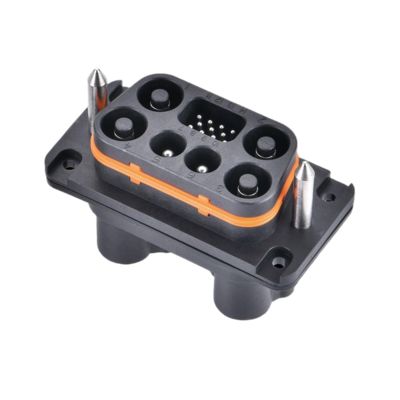

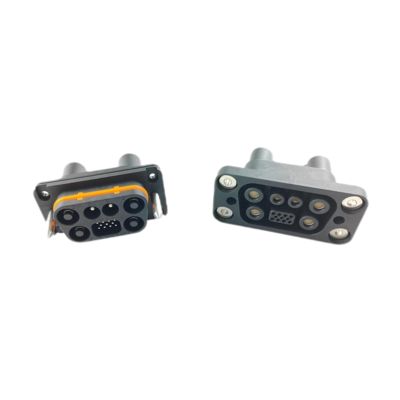

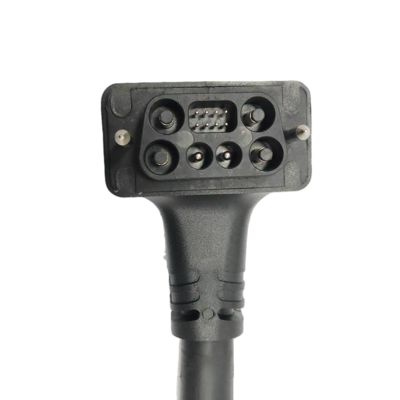

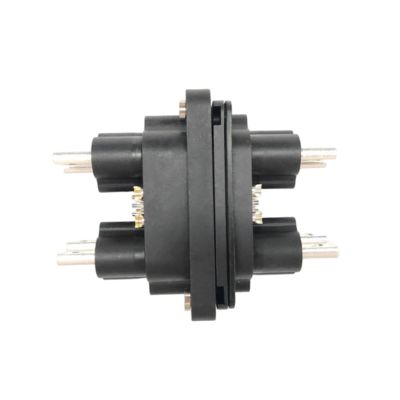

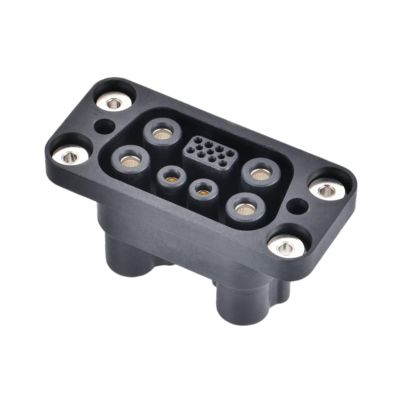

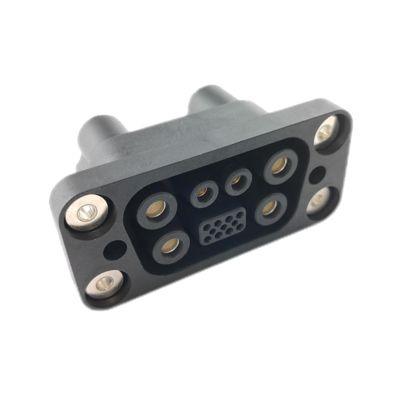

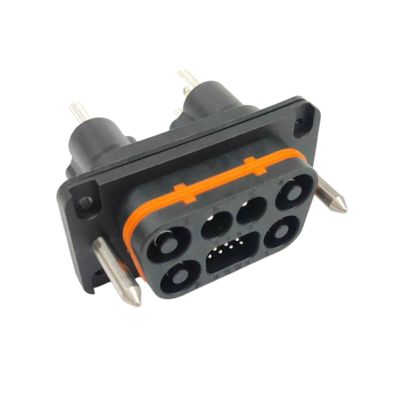

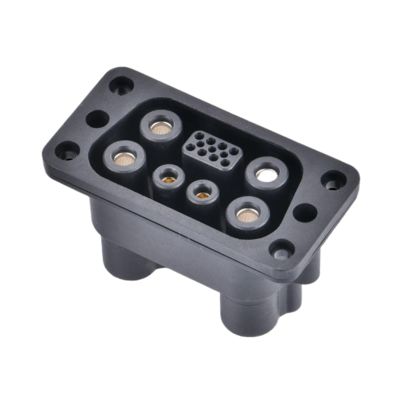

Product Pictures:
